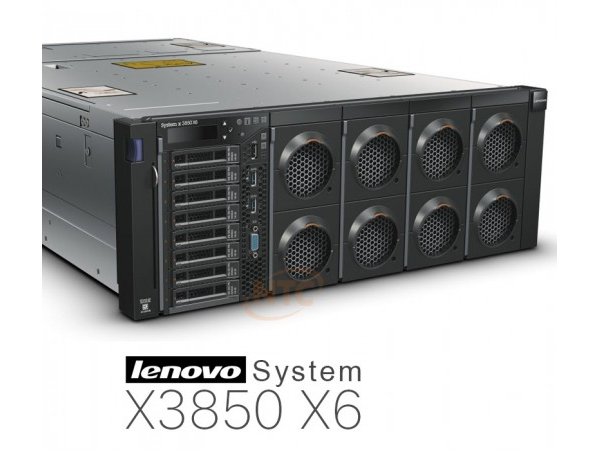

Máy chủ Lenovo IBM System x3850 X6, 2x E7-4820v3 RAM 64GB DDR3 (6241F1A)
Thông tin sản phẩm Máy chủ Lenovo IBM System x3850 X6, 2x E7-4820v3 RAM 64GB DDR3 (6241F1A)
Key Features
Processor(s): 2 x Compute Book Xeon 10C E7-4820v3 1.9GHz/1600MHz/25MB 115W
Memory: 64GB RAM (4x 16GB DDR3 2Rx4 PC3L-12800 CL11, 1.35V ECC 1600MHz LP RDIMM)
Network Controller: 4 x1GbE, Intel I350-T4 ML2 Quad Port GbE Adapter:
Quad-port 1 Gb Ethernet connectivity, Intel I350-AM4 ASIC, RJ45 ports for copper cables
RAID Controller: ServerRAID M5120 Controller, 2x Mini-SAS (SFF-8088) supported RAID 0, 1, 1+0, 5, 50
I/O Slot: Standar 6/ max12
PCIe Expansion: Up to 11 PCIe; Gen3 (up to 11), Gen 2 (up to 2), up to five x16 slots; up to six full-length, full-height
Internal Storage: HDD Option, 4x 2.5"/8 Open bay
The x3850 X6 server supports 1.8-inch solid-state drives and 2.5-inch SSDs and HDDs.
Drives are installed in the Storage Book. The x3850 X6 has one Storage Book.
The Storage Book supports the following configurations:
4x 2.5-inch hot-swap drive bays
8x 2.5-inch hot-swap drive bays
4x 2.5-inch hot-swap drive bays + 8x 1.8-inch hot-swap SSD bays
8x 1.8-inch hot-swap SSD bays
16x 1.8-inch hot-swap SSD bays
4x 2.5-inch PCIe NVMe SSDs
2x 2.5-inch PCIe NVMe SSDs + 4x 2.5-inch HDD hot-swap drives
2x 2.5-inch PCIe NVMe SSDs + 8x 2.5-inch HDD hot-swap drives
Optical Drive Bay: None ship standard
Power Supply: 2x 900W Power Supply
Form Factor: 4U
The server is shipped with the following items:
Rail kit
Cable management brackets
2.8 m (9.18 ft) C13-C14 power cord (one for each power supply)
Documentation CD and safety/warranty/installation information
Machine type |
6241(F1A) |
Firmware |
Lenovo-signed firmware |
Form factor |
4U rack. |
Processor |
Models with E7 v4 processors: One, two or four Intel Xeon E7-4800 v4 or E7-8800 v4 processors, each in a Compute Book. Processor options have between 4 and 24 cores with core frequencies up to 3.2 GHz. Three QPI links up to 9.6 GT/s each. Compute Books have TruDDR4 memory up to 1866 MHz, but cannot be mixed. Up to 60 MB L3 cache. Intel C602J chipset. Models with E7 v3 processors: One, two or four Intel Xeon E7-4800 v3 or E7-8800 v3 processors, each in a Compute Book. Processor options between 4 cores (3.2 GHz) and 18 cores (up to 2.5 GHz). Three QPI links up to 9.6 GT/s each. Compute Books have either DDR3 memory up to 1600 MHz or TruDDR4 memory up to 1866 MHz, but cannot be mixed. Up to 45 MB L3 cache. Intel C602J chipset. Models with E7 v2 processors: Up to four Intel Xeon E7-4800 v2 or E7-8800 v2 processors, each in a Compute Book. Each processor has between six cores (up to 3.4 GHz) and 15 cores (up to 2.8 GHz). Three QPI links up to 8.0 GTps each. Compute Books have DDR3 memory up to 1600 MHz memory speed. Up to 37.5 MB L3 cache. Intel C602J chipset. |
Memory |
Up to 96 DIMM sockets (24 DIMMs per processor, installed in the Compute Book). RDIMMs and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory is either TruDDR4 memory (up to 1866 MHz) or DDR3 memory (up to 1600 MHz), depending on the Compute Book selected. DDR3 memory and TruDDR4 memory cannot be mixed in the same Compute Book. Compute Books with DDR3 memory and Compute Books with TruDDR4 memory cannot be mixed in the same system. |
Memory maximums |
Models with TruDDR4 Compute Books:
Models with DDR3 Compute Books:
|
Memory protection |
ECC, Chipkill, RBS, memory mirroring, and memory rank sparing. |
Disk drive bays |
Up to 16 1.8" SSD bays, or up to 8 2.5" hot-swap SAS/SATA bays, or up to 4x 2.5” hot-swap PCIe NVMe SSD drive bays. |
Maximum internal storage |
Up to 30.7 TB with 8x 3.84 TB 2.5-inch SAS SSDs or |
RAID support |
12 Gb SAS/SATA RAID 0, 1, or 10 with ServeRAID M5210; optional upgrades to RAID 5 and 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Upgrades to RAID 6 or 60 available for M5210 with 1 GB or 2 GB upgrades. |
Optical and tape bays |
No internal bays. See http://support.lenovo.com/en/documents/pd011281 |
Network interfaces |
Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or quad-port GbE cards with RJ-45 connectors. See the Ethernet column in the Standard models table. Dedicated 1 GbE port for systems management. As listed in the Standard models section, Model B3x includes the Broadcom NetXtreme II ML2 Dual Port 10GbE SFP+ adapter as standard. All other standard models include an Intel I350-T4 ML2 Quad Port GbE Adapter (I350-AM4 based). The Broadcom NetXtreme II ML2 Dual Port 10GbE SFP+ Adapter has the following specifications: Dual-port 10 Gb Ethernet connectivity Broadcom BCM57810S ASIC SFP+ ports supporting fiber optic and direct-attach copper (DAC) cables
The Intel I350-T4 ML2 Quad Port GbE Adapter has the following Specifications: Quad-port 1 Gb Ethernet connectivity, Intel I350-AM4 ASIC
RJ45 ports for copper cables |
PCI Expansion slots |
Up to 11 PCIe slots plus dedicated Mezzanine LOM slot.
Optional I/O Books can be either of the following options:
|
Ports |
Front: Two USB 3.0, one USB 2.0, and one DB-15 video ports. Rear: Four USB 2.0, one DB-15 video, one DB-9 serial, and one 1 GbE RJ-45 systems management. Internal: USB 2.0 port for embedded hypervisor. |
|
Calibrated Vectored Cooling™. Up to ten redundant hot-swap fan packs and five fan zones with N+1 fan redundancy. Each fan pack includes two counter-rotated dual-motor fans. |
|
|
Hot-swap parts |
Drives, power supplies, fans, and optional I/O Books. |
Video |
Matrox G200eR2 with 16 MB memory that is integrated into the IMM2. Maximum resolution is 1600 x 1200 at 75 Hz with 16 M colors. |
Security features |
Power-on password, admin password |
|
|
Operating systems |
Microsoft Windows Server 2012 R2, 2012, and 2008 R2, RHEL 6 and 7, SLES 11 and 12, and VMware vSphere ESXi. See the Supported operating systems section for details. |
Limited warranty |
Three-year customer-replaceable unit (CRU) and onsite limited warranty with 9x5 next business day (NBD). |
Service and support |
Optional service upgrades are available through Lenovo Services offerings: 4-hour or 2-hour response time, 8-hour fix time, 1-year or 2-year warranty extension, and remote technical support for Lenovo hardware and some Lenovo / OEM applications. |
Dimensions |
Height: 173 mm (6.8 in.), width: 482 mm (19.0 in.), depth: 804 mm (31.6 in), depth with cable management brackets installed: 836 mm (32.9 in), depth with Full-length I/O Book installed: 921 mm (36.2 in) |
Weight |
Minimum configuration: 35.9 kg (79.2 lb), typical: 46.4 kg (102.3 lb), maximum: 54.7 kg (120 lb) |
