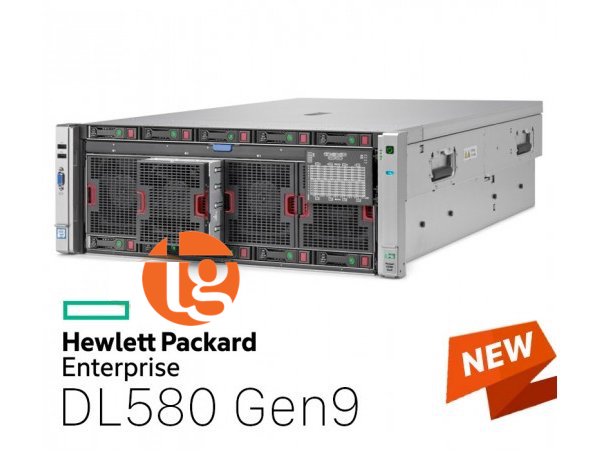

Máy chủ Server HPE ProLiant DL580 G9 E7-4809 v3, 793161-B21

CPU: Intel® Xeon® E5
RAM: 8GB - 32GB
Số lượng:
Giá bán: 0 VND

Máy chủ Server HPE ProLiant DL580 G9 E7-4809 v3, 793161-B21

Key Features

Form Factor: Rack 4U
Processor : 2x Intel Haswell 8 Core E7-4809 v3 2.0Ghz, 20M Cache, 6.4GT/s QPI
Memory Cartridge: 2x HP DL580 Gen9 12 DIMMs Memory Cartridge
Memory:  4x 16GB DDR4-2133P 2Rx4 RDIMM RAM
Network Controller: 1x HP Ethernet 1GbE 331FLR FIO 4ports  Adapter
Raid Controller: Smart Array P830i Controller, 2 internal x8 Mini-SAS double-wide intern. RAID 1, 10, 5, 50, 6, 60
+ 1x HP 2GB FIO Flash Backed Write Cache
Storages: Non HDD, up to 10 SFF internal HĐ
PCI Express: 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots) |
Optical Drive: external (option)
PSU : 2x HP 1200W CS Plat PL Hot-plug Power Supply Kit
Management: HP iLO Adv incl 3yr TS U 1-Svr License
Warranty: HP 3Y 4 hr 24x7 Proactive Care SVC


Form Factor

Rack 4U


Intel® Xeon® E7-4800 v3/ E7-8800 v3 product family
Intel® Xeon® E7-4800 v4/ E7-8800 v4 product family

Number of processors

2, 3 or 4


24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 4

Cache Memory

20MB (1 x 20MB)
30MB (1 x 30MB)
35MB (1 x 35MB)
45MB (1 x 45MB)


Intel® C602J Chipset


maximum 6 TB (64GB x 96 DIMM slots)
DDR4 Registered (RDIMM) and Quad Rank Load Reduced (LRDIMM)

Network Controller

HPE ProLiant Gen9 servers offer a new flexible network technology - FlexibleLOMs, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded adapter

. 10Gb 534FLR-SFP+ FlexFabric Adapter 2 Ports per controller or
. 1Gb 331FLR Ethernet Adapter 4 Ports per controller
Depending on model

Expansion Slots

3 PCIe slots (+3 PCI slots available with upgrade option, second processor required)

Storage Controller

Smart Array P830i/2GB FBWC or
Smart Array P830i/4GB FBWC
Depending on model

RAID 6, 60 (Advanced Data Guarding)

RAID 5, 50 (Distributed Data Guarding)

RAID 1, 10 (Drive Mirroring), RAID 1 ADM, 10 ADM (Advanced Data Mirroring)


RAID 0 (Striping)

2 internal x8 Mini-SAS double-wide internal

Internal Storage Devices

Internal SAS lower and upper backplanes support up to ten SFF hard disk drives or solid state drives or Express Bays (NVMe drives)

Maximum Storage internal

Hot Plug SFF SAS                           20TB         10 x 2.0TB

Hot Plug SFF SAS SSD                  38.4TB      10 x 3.84TB

Hot Plug SFF SATA SSD                38.4TB      10 x 3.84TB

Hot Plug SFF NVMe PCIe SSD      8TB           5 x 1.6TB

NOTE: Optional support for 5 NVMe SSDs or 5 SFF drives are also available.


Integrated Matrox G200 video standard

16 MB Flash

256 MB DDR 3 with ECC (112 MB after ECC and video)

HPE iLO 4 On System Management Memory

16 MB Flash

256 MB DDR 3 with ECC (112 MB after ECC and video)

System FANs

4 Hot Plug Fans (eight rotors with N+1 redundancy)


Serial 1 back

Video 1 front; 1 back

FlexibleLOM Network Ports Selection of FlexibleLOM options

iLO 4 Remote Management 1 x 1Gbe dedicated

Micro SD Slot 1 internal
USB 2.0 Ports 8 total: 2 front; 4 back; 2 internal

NOTE: Dual microSD USB option kit also available (741279-B21).

On System Management

HPE iLO (Firmware HPE iLO4 2.40 or later), 4GB NAND

iLO Management (standard)
Intelligent Provisioning (standard)
HP OneView Advanced (standard)
iLO Management (standard)
Intelligent Provisioning (standard)
iLO Advanced (optional)
HP OneView Advanced (optional)
HP Insight Control (optional)

Power Supply

HPE 1500W Common Slot Platinum Plus Hot Plug Power Supply

HPE 1500W Common Slot 48VDC Hot Plug Power Supply

NOTE: 1500W power supply supports high line voltage only.

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply

NOTE: A minimum of two (2) power supplies are required. Four (4) 1500W power supplies offers N+N redundancy for highly loaded configurations.
Depending on model

Require Cabling

Server Power Cords

Server ships with high-voltage server to PDU power cord.

NOTE: If customers require a local power cord, they can check the power cord matrix for the appropriate county specific SKU. Please see the following power cord matrix for details: http://www.hp.com/go/powercordmatrix.

Operating Systems

Microsoft Windows Server

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)



Oracle Linux

HPE server UEFI/
Legacy ROM

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure Boot

Operating system specific functionality

Support for > 2.2 TB (using GPT) boot drives

USB 3.0 Stack

Embedded UEFI Shell

Mass Configuration Deployment Tool using RESTful API for iLO 4

PXE boot support for IPv6 networks

Boot support for option cards that only support a UEFI option ROM

Network Stack configurations



Upgradeable to 4 processors

Up to 96 DDR4 DIMM slots

9 PCIe Gen3 expansion slots

NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the "Expansion Slots" section for more details.

10 SFF internal HDD/SSD SAS drive bays or 5 SFF Internal Express Bays + 5 SFF Internal HDD/SSD

drive bays

NOTE: Five drive bays come standard. An optional five SAS drive or five Express backplane kit with five drive bays can be ordered for ten drives.

5 NVMe SSD drive bays

4 redundant hot-plug power supplies
