Processor: Intel® Xeon® E3-1240 v5 3.5GHz, 8M cache, 4C/8T, turbo (80W)

RAM: 1x 8GB UDIMM

HDD: Non HDD 4x 3.5"

Raid: PERC H330

DVD ROM : DVD-RW 8x

Dual port 1Gb onboard

Power: 1x 350W

Management IDRAC 8 Basic

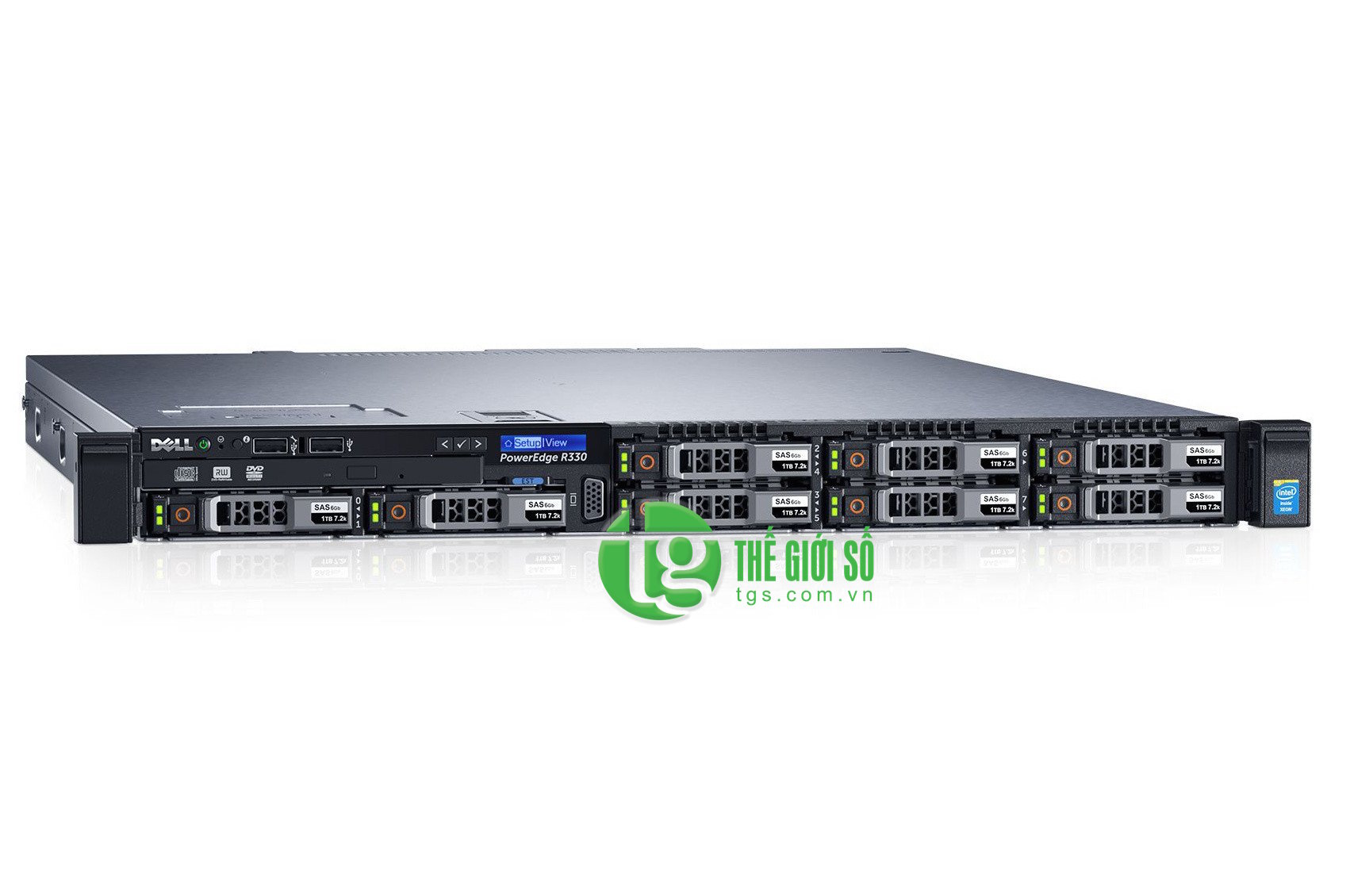

MÁY CHỦ SERVER DELL POWEREDGE R330 3.5" E3-1240 V5

Form factor

Rack server 1U

Processor

1 processor from the following product families:

Intel® Xeon® processor E3-1200 v5 product family

Intel Pentium

Intel CoreTM i3

Chipset

Intel C236

Operating system Support

Microsoft® Windows Server® 2012

Microsoft Windows Server 2012 R2, x64

Red Hat® Enterprise Linux®

VMware® vSphere® 2015

Memory

Architecture: Up to 2133MT/s DDR4 DIMMs

Memory type: UDIMMs

Memory module sockets: 4

Maximum RAM: Up to 64GB

Hypervisor support (Optional)

Microsoft Windows Server with Hyper-V®

Citrix® XenServer®

VMware® vSphere® ESXi®

Storage

3.5” Enterprise SATA 7.2K HDDs

3.5” nearline SAS 7.2K HDDs

3.5” 7.2K SATA entry drives

Drive bays

4 x 3.5” cabled HDDs

Slots

2 x PCIe 3.0 slots + 1 slot for internal storage

RAID controllers

PERC S130, PERC H330, PERC H730, PERC H830

Network controller

Broadcom® BCM5720

Communications

Dual-port 1Gb Server adapters

Broadcom quad-port 1Gb Base-T adapter

Broadcom dual-port 1Gb Base-T adapter

Power

2x 350W

Management

Systems management: IPMI 2.0 compliant

• Dell OpenManage Essentials

• Dell OpenManage Mobile

• Dell OpenManage Power Center

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft System Center

• Dell OpenManage Integration for VMware vCenter™

Dell OpenManage Connections:

• HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management

• Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:

• iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),
