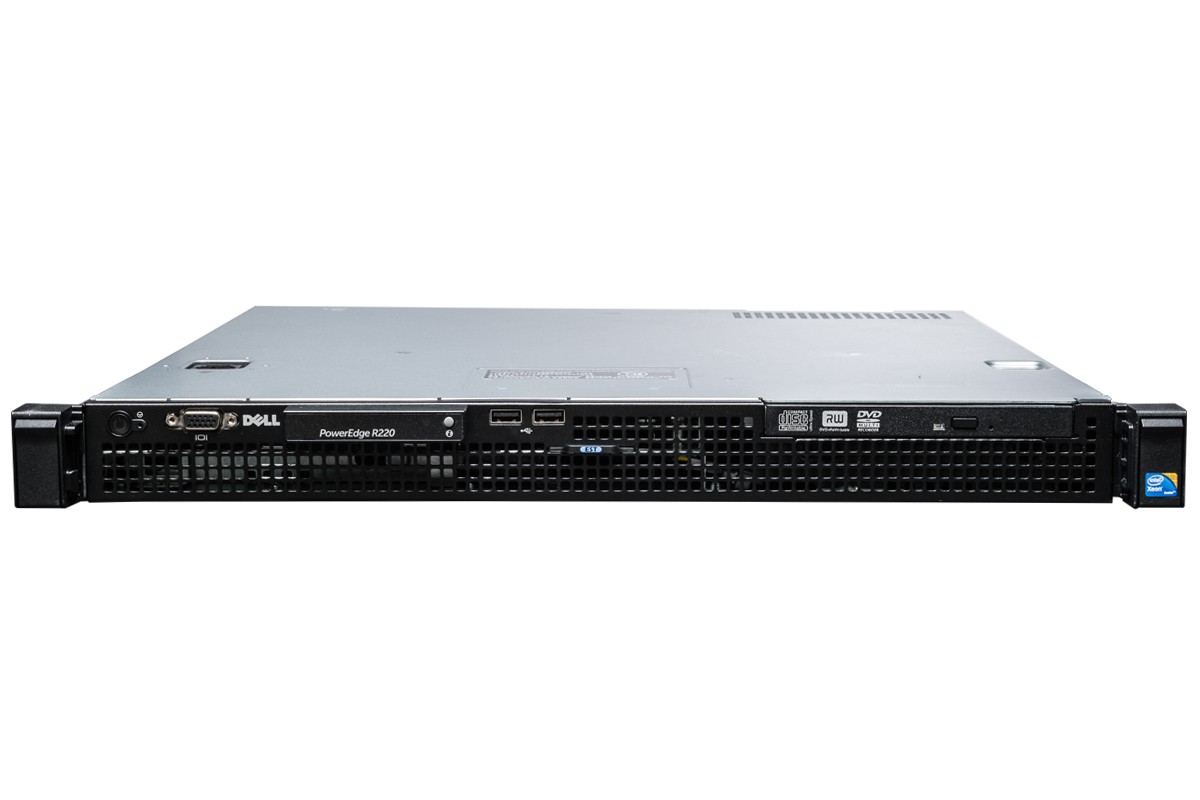

Dell PowerEdge R220

Chipset

Intel® C222 Chipset

Max Processor

1

PROCESSOR

Intel® Xeon® E3-1220v3 (3.1 GHz, 8M Cache, LGA1155)
Intel Xeon® processor E3-1200 v3 product family
Intel Pentium®
Intel Celeron®
Intel Core® I3-4130

MEMORY

8GB DDR3 1600 240-Pin DDR3 ECC UDIMMs
Memory DIMMs
4x DDR3 UDIMMs w/ECC
1600MT/s
Min/Max RAM
4GB/32GB

HDD

HDD 500GB 7.2K SATA 3.5''
2 x 3.5” or 2 x 2.5”
Default SATA; Optional SAS and SSD

Raid Controller

PERC H310

Network Controller

2x GbE LOM w/o TOE

Management

Remote management
iDRAC7 Enterprise with Lifecycle Controller (optional)
Systems management
Basic management
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for
VMware® vCenter
Dell OpenManage
Connections:
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager

Expansion Slots

1x PCIe 3.0 x16 slot; full height, half length

Video Support

Matrox G200eW w/ 8MB memory integrated in Nuvoton WPCM450 (BMC controller) and supports 2D graphics only

POWER

Non-redundant, 250W (80+ Silver); auto-ranging (100V~240V)

Form Factor

1U Rack

OS Supports

Microsoft Windows Server 2008 R2 SP1
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
